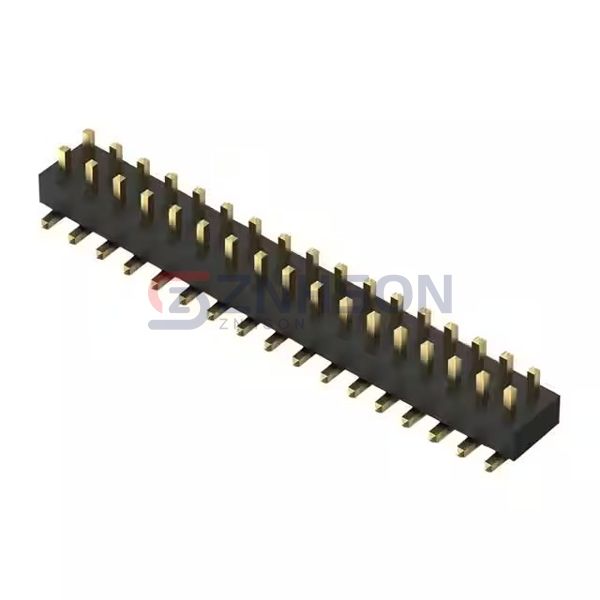

BF030-34A-B0-0400-0220-0600-LD
GCT
GCT
34W, 2MM PITCH PIN HDR, DIL, SMT
$1.52
Available to order
Reference Price (USD)
1+
$1.52292
500+
$1.5076908
1000+
$1.4924616
1500+
$1.4772324
2000+
$1.4620032
2500+
$1.446774
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BF030-34A-B0-0400-0220-0600-LD by GCT is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BF030-34A-B0-0400-0220-0600-LD supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. GCT ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A per Contact
- Voltage Rating: 250VAC/DC
