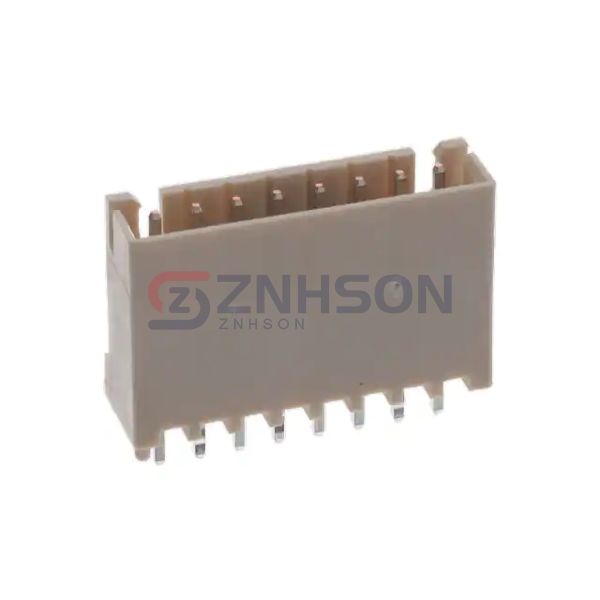

BH8B-XH-2(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 8POS 2.5MM
$0.58
Available to order
Reference Price (USD)
1+
$0.58000
500+
$0.5742
1000+
$0.5684
1500+
$0.5626
2000+
$0.5568
2500+
$0.551
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BH8B-XH-2(LF)(SN) male pin header by JST Sales America Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. JST Sales America Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.276" (7.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Amphenol ICC (FCI)
77311-424-07LF
TE Connectivity AMP Connectors
5-103167-3
3M
929700-06-03
Samtec Inc.
FTSH-107-02-L-DH-A
Samtec Inc.
TSM-104-04-S-SH-P
Harwin Inc.
M80-5010805
Samtec Inc.
IPL1-106-02-S-SH-K
Samtec Inc.

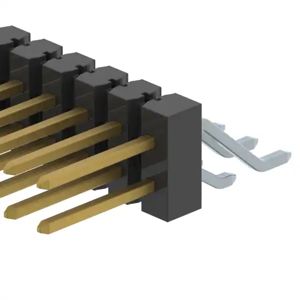

TSM-125-02-F-DH
