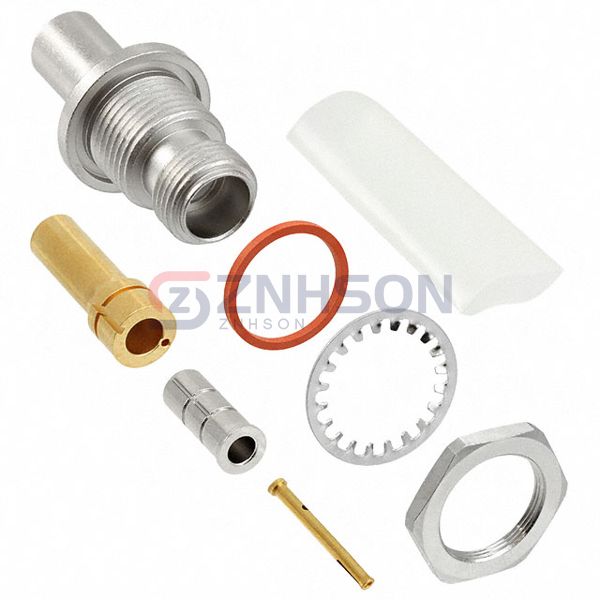

BJ3159AC-201
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN TTM JACK STR CRIMP
$44.97
Available to order
Reference Price (USD)
1+
$38.83000
10+
$36.54300
25+
$35.40120
50+
$34.93100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BJ3159AC-201 from Cinch Connectivity Solutions Trompeter represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The BJ3159AC-201 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: TTM, Twinaxial/Triaxial
- Connector Type: Jack, Female Socket (Concentric)
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: Non-Constant
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: M17/176-00002
- Fastening Type: Threaded
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
