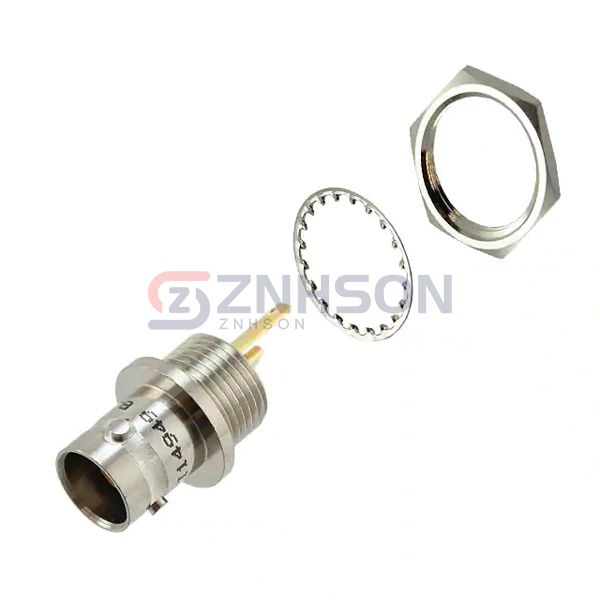

BJ770
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN TRB JACK STR SOLDER
$25.82
Available to order
Reference Price (USD)
1+
$22.30000
10+
$20.12900
25+
$19.28480
50+
$18.43400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BJ770 from Cinch Connectivity Solutions Trompeter represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The BJ770 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: TRB, Twinaxial/Triaxial
- Connector Type: Jack, Female Socket (Concentric)
- Contact Termination: Solder Cup
- Shield Termination: Solder Tag
- Impedance: Non-Constant
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Rear Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: Extended Insulation, Three Lug
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
