BM10B-GHS-TBT(LF)(SN)(N)
JST Sales America Inc.
JST Sales America Inc.

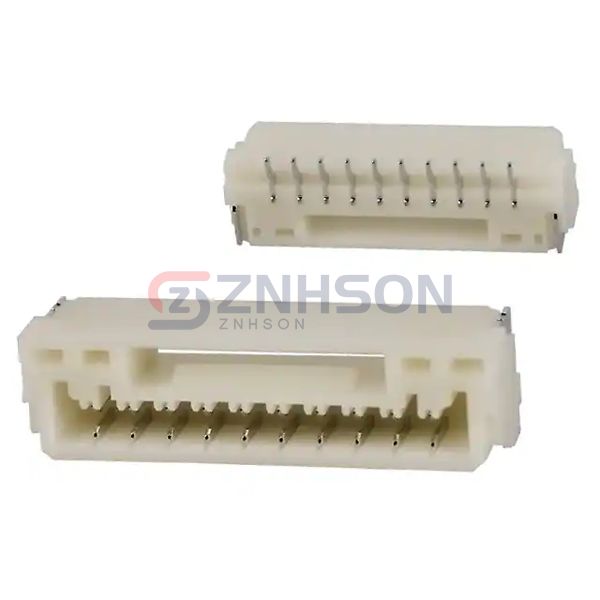

CONN HEADER SMD 10POS 1.25MM
$0.64
Available to order
Reference Price (USD)
2,500+
$0.28682
5,000+
$0.27726
12,500+
$0.25432
25,000+
$0.24858
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BM10B-GHS-TBT(LF)(SN)(N) male pin header by JST Sales America Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose JST Sales America Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.159" (4.05mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
