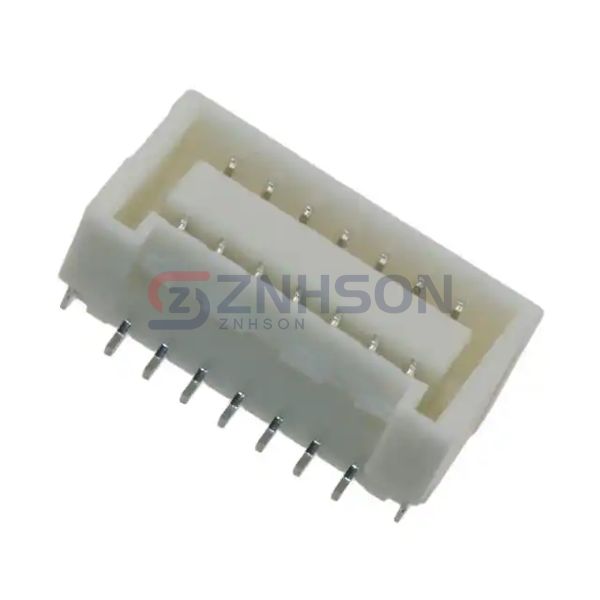

BM14B-ZPDSS-TF(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD 14POS 1.5MM
$1.44
Available to order
Reference Price (USD)
1,000+
$0.77379
2,000+
$0.72543
3,000+
$0.70125
5,000+
$0.67707
10,000+
$0.64321
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BM14B-ZPDSS-TF(LF)(SN) by JST Sales America Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BM14B-ZPDSS-TF(LF)(SN) supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. JST Sales America Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
