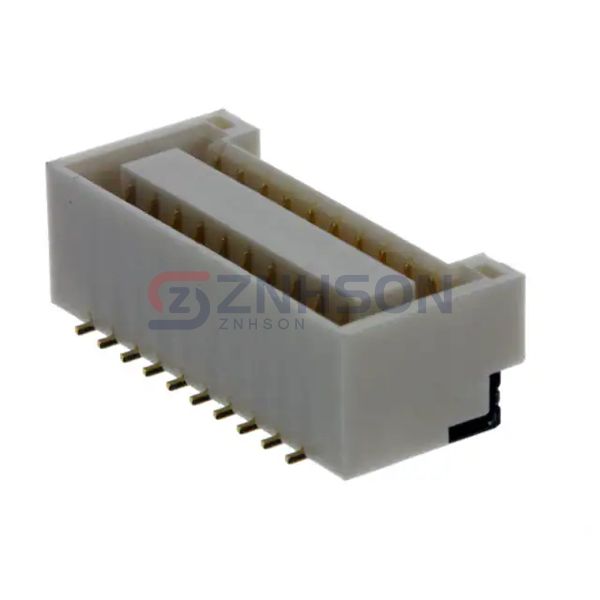

BM20B-GHDS-G-TF(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD 20POS 1.25MM
$1.49
Available to order
Reference Price (USD)
1,250+
$0.80188
2,500+
$0.72670
6,250+
$0.70165
8,750+
$0.66656
12,500+
$0.65153
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the BM20B-GHDS-G-TF(LF)(SN) rectangular connector header from JST Sales America Inc.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the BM20B-GHDS-G-TF(LF)(SN) meets the highest industry standards. JST Sales America Inc. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
Preci-Dip
800-10-062-20-001101
TE Connectivity AMP Connectors
2-5499141-6
Samtec Inc.
TSM-105-01-T-DH-TR
Samtec Inc.
FTE-152-02-G-DV
Samtec Inc.

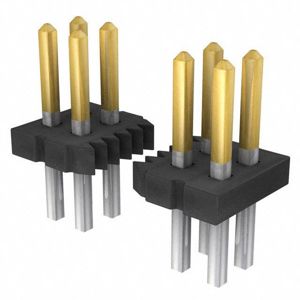

FTS-105-01-LM-D-P
Samtec Inc.

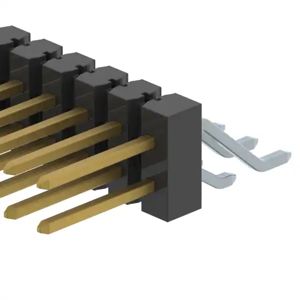

TSM-125-02-L-DH-K
Samtec Inc.

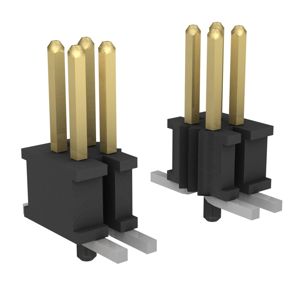

FTSH-120-04-F-DV-A-P-TR
