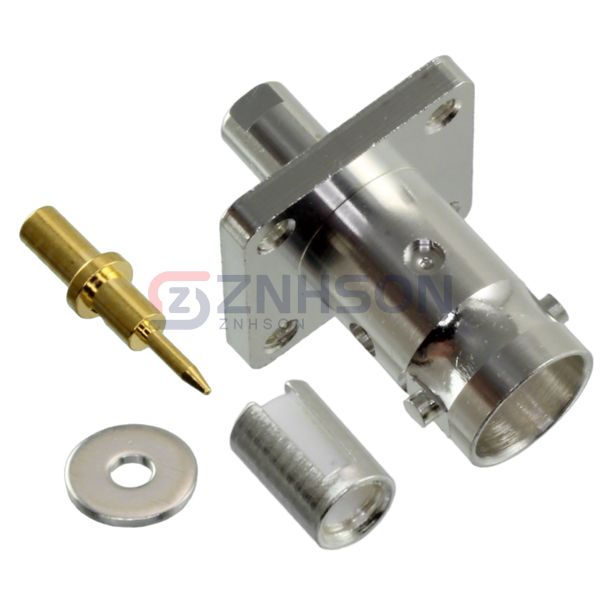

BNC-PJ-196/U(40)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN BNC JACK STR 50OHM SOLDER
$45.78
Available to order
Reference Price (USD)
1+
$39.96000
10+
$36.07200
25+
$34.56000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Hirose Electric Co Ltd's BNC-PJ-196/U(40) represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The BNC-PJ-196/U(40) variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Clamp
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Cable Group: RG-196A
- Fastening Type: Bayonet Lock
- Frequency - Max: 1 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
Molex
0732512430
TE Connectivity AMP Connectors
1408349-1
Amphenol RF
172368
Rosenberger
D4S12H-40MA5-B
Radiall USA, Inc.
R161416130
Radiall USA, Inc.
9507-9113-004
Amphenol Times Microwave Systems
EZ-200-SF-SS-X
RF Industries
RFF-1402-08
Radiall USA, Inc.

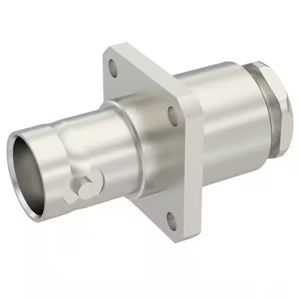

R141258000
