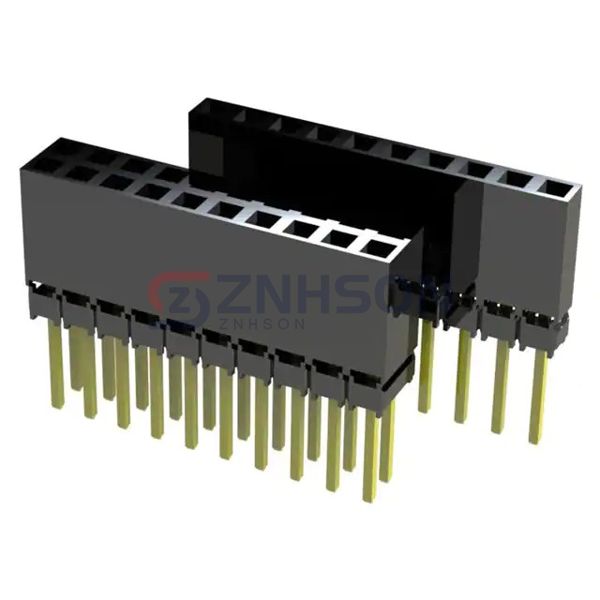

BSSH-109-D-12-H-LF
Major League Electronics
Major League Electronics
.100 Socket
$1.68
Available to order
Reference Price (USD)
1+
$1.68000
500+
$1.6632
1000+
$1.6464
1500+
$1.6296
2000+
$1.6128
2500+
$1.596
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with BSSH-109-D-12-H-LF Major League Electronics Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Major League Electronics connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 18
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Insulation Color: Black
- Insulation Height: 0.635" (16.13mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PPPC111LFBN-RC
Mill-Max Manufacturing Corp.
803-43-070-10-002000
Samtec Inc.
CLT-123-02-G-D-BE-A-K
Preci-Dip
416-83-218-41-009101
Samtec Inc.
SEML-115-02-03.0-H-D-WT
TE Connectivity AMP Connectors
7-534998-6
Preci-Dip

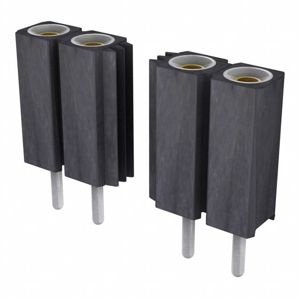

801-87-032-10-004101
Preci-Dip

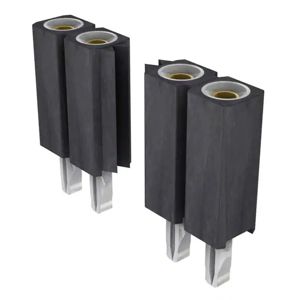

801-83-043-66-001101
Samtec Inc.

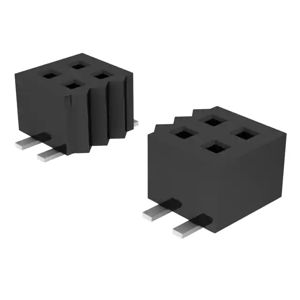

CLP-115-02-G-D-K
