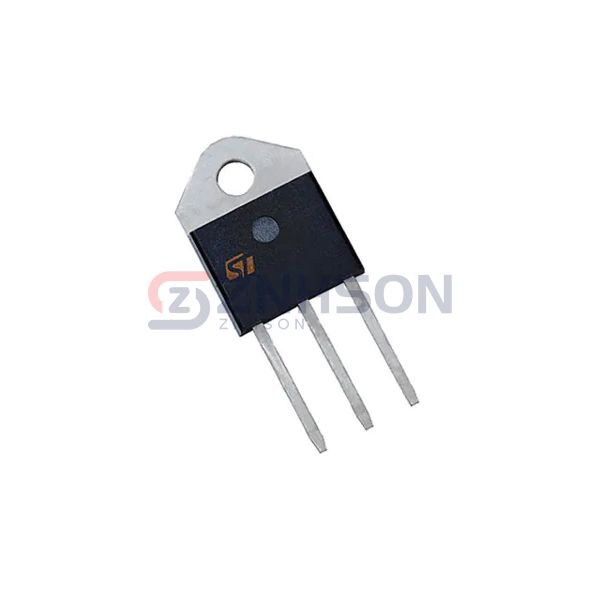

BTW69-1200N
STMicroelectronics
STMicroelectronics
SCR 1.2KV 50A TOP3
$6.99
Available to order
Reference Price (USD)
1+
$6.00000
30+
$5.16600
120+
$4.48558
510+
$3.90600
1,020+
$3.40200
2,520+
$3.27600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BTW69-1200N Thyristor - SCR by STMicroelectronics is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With STMicroelectronics's commitment to quality, the BTW69-1200N guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 50 mA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 31 A
- Current - On State (It (RMS)) (Max): 50 A
- Current - Hold (Ih) (Max): 100 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 700A, 763A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TOP-3
- Supplier Device Package: TOP3
Related Products
Solid State Inc.
2N2326A
SMC Diode Solutions
SCT655Z
Vishay General Semiconductor - Diodes Division
VS-16RIA80
Vishay General Semiconductor - Diodes Division
VS-16TTS16S-M3
onsemi
MCR12LMG
Littelfuse Inc.
S601EAP
Vishay General Semiconductor - Diodes Division
VS-110RKI40
Littelfuse Inc.
S4016RTP
NTE Electronics, Inc

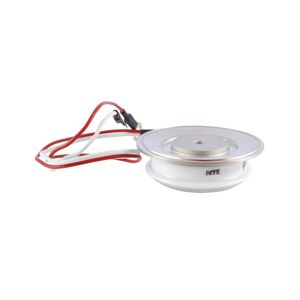

NTE5553
