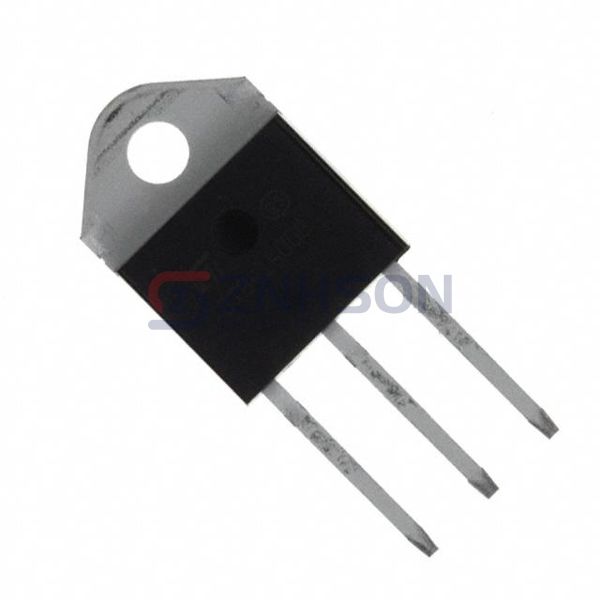

BTW69-1200RG
STMicroelectronics
STMicroelectronics
SCR 1.2KV 50A TOP3
$12.31
Available to order
Reference Price (USD)
1+
$7.62000
30+
$6.56200
120+
$5.69775
510+
$4.96155
1,020+
$4.32135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BTW69-1200RG Silicon Controlled Rectifier from STMicroelectronics sets new standards in the Discrete Semiconductor Products market. As part of the Thyristors - SCRs classification, it offers unmatched surge protection and switching speed. Primary application areas include electric arc furnaces, laser power supplies, and DC motor drives. For instance, it's crucial in steel production facilities. With STMicroelectronics's technological leadership, the BTW69-1200RG guarantees peak performance in extreme conditions.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 80 mA
- Voltage - On State (Vtm) (Max): 1.9 V
- Current - On State (It (AV)) (Max): 32 A
- Current - On State (It (RMS)) (Max): 50 A
- Current - Hold (Ih) (Max): 150 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 580A, 610A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TOP-3
- Supplier Device Package: TOP3
