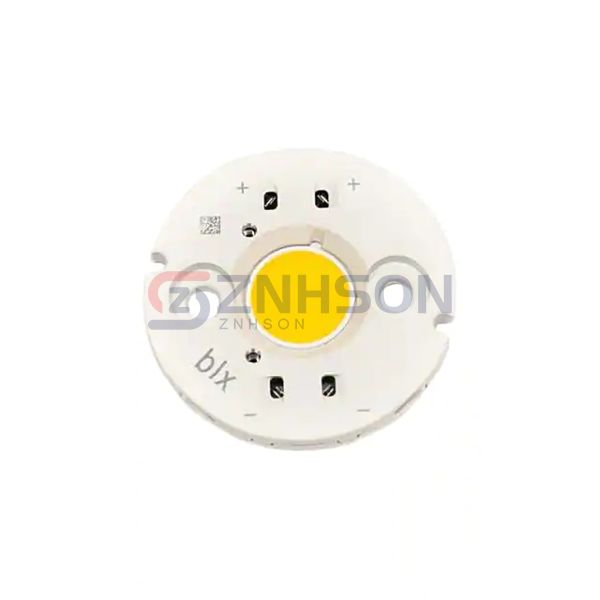

BXRC-30G1000-D-73-SE
Bridgelux
Bridgelux
LED COB VERO SE 3000K ROUND
$2.79
Available to order
Reference Price (USD)
1+
$2.79000
50+
$2.68920
100+
$2.49000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BXRC-30G1000-D-73-SE by Bridgelux is a high-efficiency LED lighting product categorized under Optoelectronics - LED Lighting - COBs, Engines, Modules, Strips. Designed for optimal performance, this product is suitable for a wide range of applications including automotive headlights, stadium lighting, and marine lighting. Choose Bridgelux for reliable and innovative lighting solutions.
Specifications
- Product Status: Active
- Type: Chip On Board (COB)
- Color: White, Warm
- CCT (K): 3000K 3-Step MacAdam Ellipse
- Wavelength: -
- Configuration: Round
- Luminous Flux @ Current/Temperature: 1024lm (Typ)
- Current - Test: 350mA
- Temperature - Test: 85°C
- Voltage - Forward (Vf) (Typ): 25.3V
- Lumens/Watt @ Current - Test: 116 lm/W
- Current - Max: 700mA
- CRI (Color Rendering Index): 90
- Viewing Angle: 120°
- Features: -
- Size / Dimension: 30.80mm Dia
- Height: 3.60mm
- Light Emitting Surface (LES): 9.90mm Dia
- Lens Type: Flat
