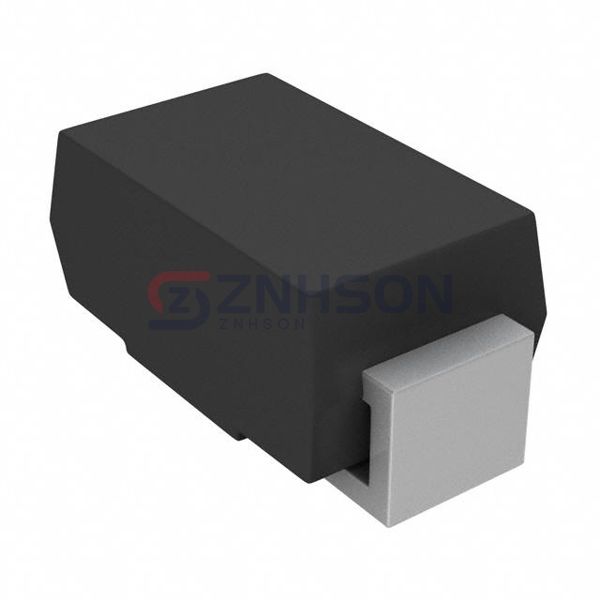

BZG05B22-M3-18
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 22V 1.25W DO214AC
$0.20
Available to order
Reference Price (USD)
6,000+
$0.17400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the BZG05B22-M3-18 Zener diode from Vishay General Semiconductor - Diodes Division is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The BZG05B22-M3-18 is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±2%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 25 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
Related Products
Nexperia USA Inc.
BZX384-B10,115
Rohm Semiconductor
BZX84B15VLFHT116
Microchip Technology
JAN1N4962C
Vishay General Semiconductor - Diodes Division
BZX384B11-G3-08
onsemi
1N5237B
Diotec Semiconductor
ZMD56
Microchip Technology
SMBJ5937C/TR13
Vishay General Semiconductor - Diodes Division

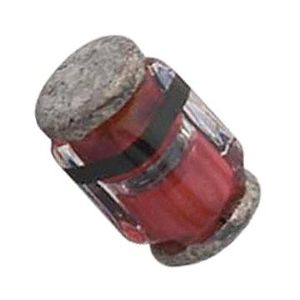

BZM55C68-TR
Vishay General Semiconductor - Diodes Division

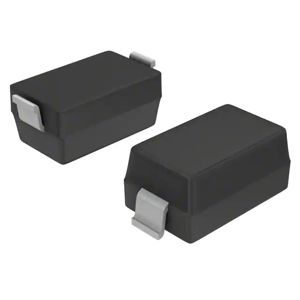

MMSZ5242C-G3-08
