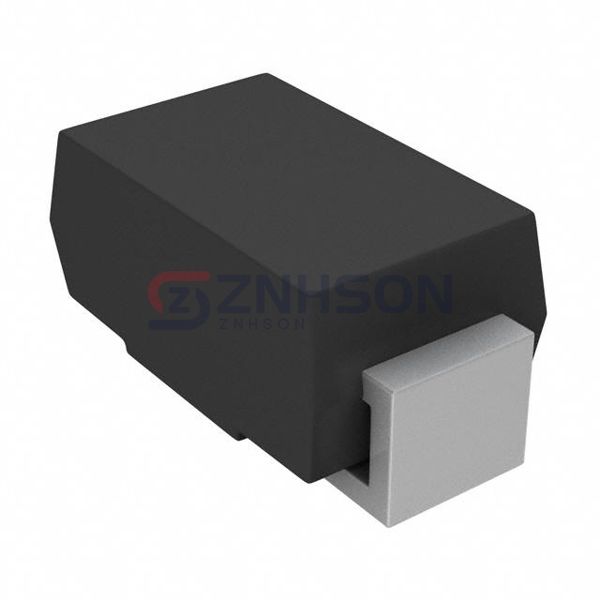

BZG05C22-M3-08
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 22V 1.25W DO214AC
$0.42
Available to order
Reference Price (USD)
1,500+
$0.11880
3,000+
$0.10890
7,500+
$0.10230
10,500+
$0.09570
37,500+
$0.08778
75,000+
$0.08448
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZG05C22-M3-08 by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the BZG05C22-M3-08 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5.68%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 25 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
Related Products
Central Semiconductor Corp
CMZ5938B BK PBFREE
Panjit International Inc.
BZT52-B4V3S-AU_R1_000A1
Panjit International Inc.
PZ1AL33B_R1_00001
Diotec Semiconductor
MM3Z10-AQ
Central Semiconductor Corp
CMDZ5237B TR PBFREE
Panjit International Inc.
BZT52-B36S_R1_00001
Central Semiconductor Corp
1N4729A TR TIN/LEAD
Microchip Technology

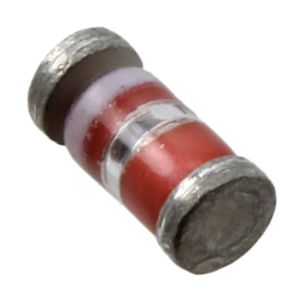

JANTX1N5523DUR-1/TR
Central Semiconductor Corp

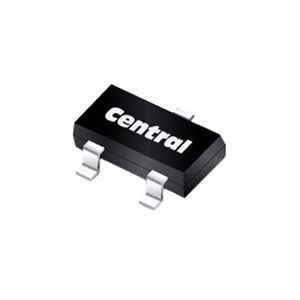

CMPZ5245B TR PBFREE
