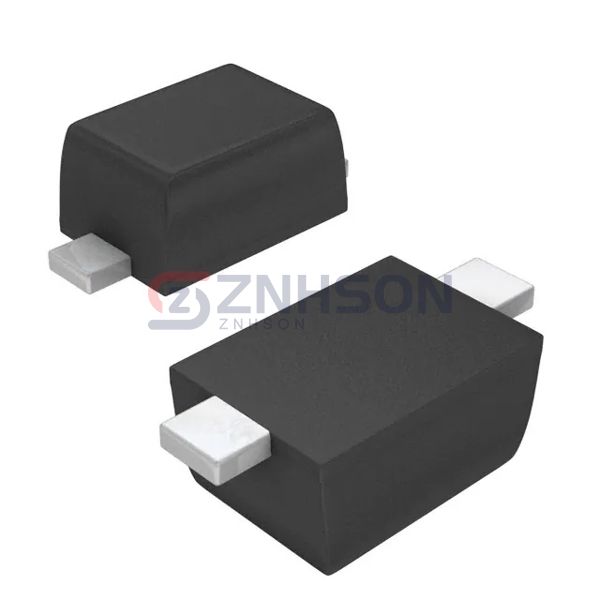

BZT52C22T-7
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 22V 300MW SOD523
$0.23
Available to order
Reference Price (USD)
3,000+
$0.03850
6,000+
$0.03500
15,000+
$0.03080
30,000+
$0.02800
75,000+
$0.02520
150,000+
$0.02142
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the BZT52C22T-7 Zener diode from Diodes Incorporated, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The BZT52C22T-7 is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±6%
- Power - Max: 300 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 15.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
