BZX84C22TS-7-F
Diodes Incorporated
Diodes Incorporated
DIODE ZENER ARRAY 22V SOT363
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZX84C22TS-7-F from Diodes Incorporated is a high-performance Zener diode array designed for precision voltage regulation applications. These discrete semiconductor products feature multiple Zener diodes in a single package, offering space-saving solutions for circuit design. Our Zener arrays provide excellent voltage tolerance and thermal stability across a wide temperature range. Common applications include voltage clamping in power supplies, overvoltage protection in automotive electronics, and signal conditioning in industrial control systems. Engineers particularly value these components for their consistent breakdown voltage characteristics and robust construction.
Specifications
- Product Status: Obsolete
- Configuration: 3 Independent
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±6%
- Power - Max: 200 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 15.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
Related Products
Rohm Semiconductor
UMZ6.8KFHTL
Diodes Incorporated
AZ23C4V7-7
Panasonic Electronic Components
DE5S062D0R
Diodes Incorporated
DZ23C13-7
Diodes Incorporated
AZ23C6V8-7
Central Semiconductor Corp
CMKZ5248B TR
Diodes Incorporated
AZ23C30-7
Central Semiconductor Corp
CMKZ5238B BK
Panasonic Electronic Components

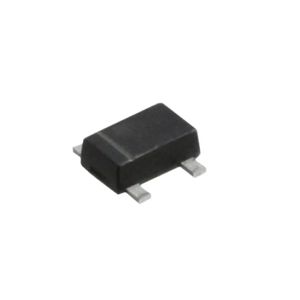

DZ4J062K0R
