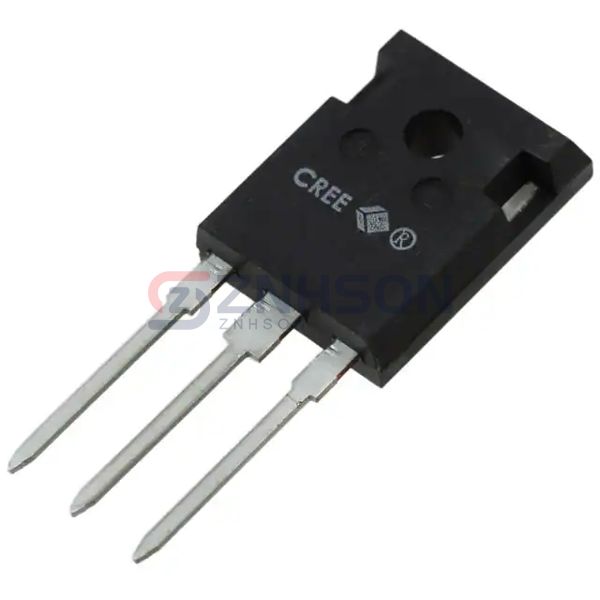

C4D40120D
Wolfspeed, Inc.
Wolfspeed, Inc.
DIODE ARRAY SCHOTTKY 1200V TO247
$40.28
Available to order
Reference Price (USD)
1+
$45.00000
100+
$37.50010
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the C4D40120D by Wolfspeed, Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Wolfspeed, Inc.'s patented junction design, the C4D40120D achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 27A
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 20 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 200 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
Vishay General Semiconductor - Diodes Division
VS-6CWH02FNTRR-M3
SMC Diode Solutions
61CNQ035
Rohm Semiconductor
RF1601NS2DFHTL
SemiQ
GSXD160A010S1-D3
STMicroelectronics
STTH12003TV1
Vishay General Semiconductor - Diodes Division
BAS40-04-HE3-18
Powerex Inc.
CD410899C
Rohm Semiconductor

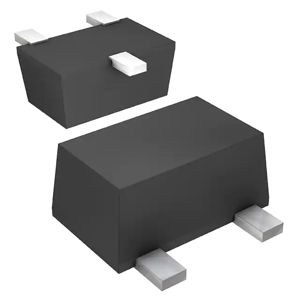

DAN222ZMT2L
Panjit International Inc.

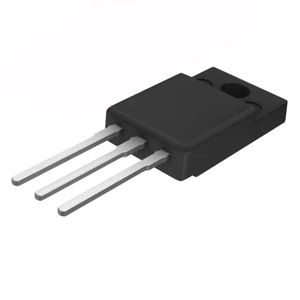

MBR1040FCT_T0_00001
