C8114-04
Aries Electronics
Aries Electronics
CONN IC DIP SOCKET 14POS TIN
$0.00
Available to order
Reference Price (USD)
45+
$2.54244
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The C8114-04 by Aries Electronics is a top-quality socket designed for ICs and transistors, offering exceptional reliability and ease of use. These sockets feature a robust design that ensures stable connections and protects components during insertion and removal. Ideal for high-frequency and high-speed applications, the C8114-04 delivers superior signal integrity. Common uses include computer motherboards, medical devices, and aerospace systems. With Aries Electronics's commitment to excellence, this socket is a trusted choice for engineers and technicians worldwide. Whether for prototyping or mass production, the C8114-04 provides a seamless solution for your interconnect requirements.
Specifications
- Product Status: Obsolete
- Type: DIP, 0.3" (7.62mm) Row Spacing
- Number of Positions or Pins (Grid): 14 (2 x 7)
- Pitch - Mating: 0.100" (2.54mm)
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Material - Mating: Phosphor Bronze
- Mounting Type: Through Hole
- Features: Closed Frame
- Termination: Wire Wrap
- Pitch - Post: 0.100" (2.54mm)
- Contact Finish - Post: Tin
- Contact Finish Thickness - Post: 200.0µin (5.08µm)
- Contact Material - Post: Phosphor Bronze
- Housing Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Operating Temperature: -55°C ~ 105°C
Related Products
TE Connectivity AMP Connectors
1735315-4
Assmann WSW Components
A48-LC-TR
Molex
1051420133
Assmann WSW Components
A22-LC-TR
TE Connectivity AMP Connectors
1-1825093-6
TE Connectivity AMP Connectors
2-641600-4
Aries Electronics
28-536-11
Assmann WSW Components
A18-LCG-T-R

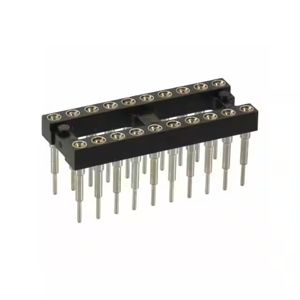

Harwin Inc.
