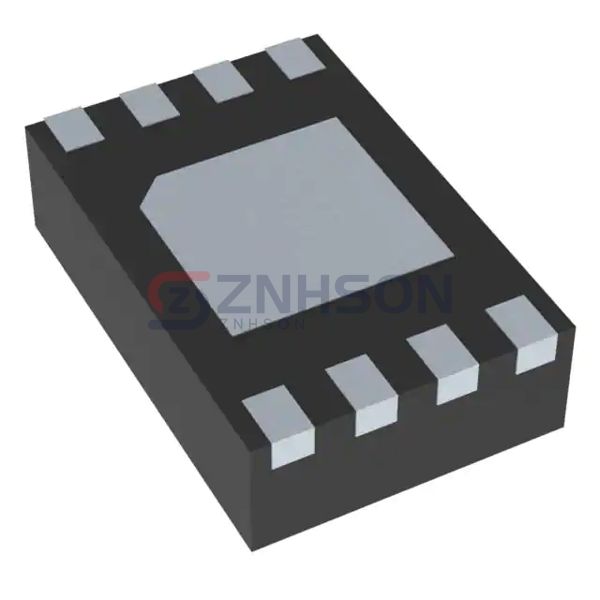

CAT6201VP2-GT3
onsemi
onsemi
IC REG LIN POS ADJ 300MA 8TDFN
$1.05
Available to order
Reference Price (USD)
3,000+
$0.42000
6,000+
$0.39900
15,000+
$0.38400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CAT6201VP2-GT3 from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Last Time Buy
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 13.5V
- Voltage - Output (Min/Fixed): 1.25V
- Voltage - Output (Max): 12.5V
- Voltage Dropout (Max): 0.35V @ 300mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 150 µA
- Current - Supply (Max): 300 µA
- PSRR: 62dB ~ 52dB (1kHz ~ 20kHz)
- Control Features: Current Limit, Enable, Soft Start
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-TDFN (2x3)
