CD74HC86E
Texas Instruments
Texas Instruments

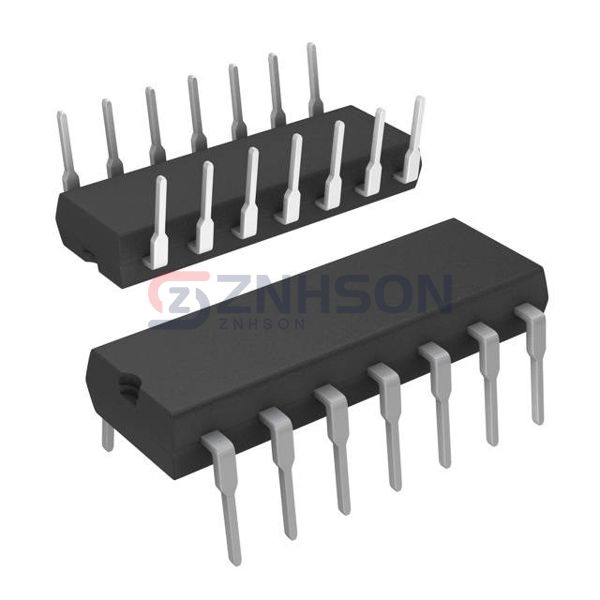

IC GATE XOR 4CH 2-INP 14DIP
$0.82
Available to order
Reference Price (USD)
1+
$0.75000
10+
$0.65700
25+
$0.61680
100+
$0.50350
500+
$0.39800
1,000+
$0.31840
2,500+
$0.28855
5,000+
$0.26865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CD74HC86E by Texas Instruments sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The CD74HC86E's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: XOR (Exclusive OR)
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Logic Level - Low: 0.5V ~ 1.8V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
