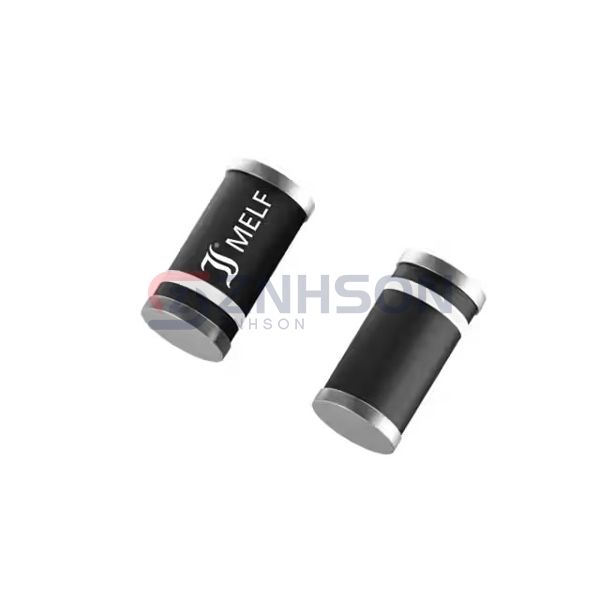

CDLL5520B/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$6.40
Available to order
Reference Price (USD)
1+
$6.40500
500+
$6.34095
1000+
$6.2769
1500+
$6.21285
2000+
$6.1488
2500+
$6.08475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the CDLL5520B/TR Zener diode by Microchip Technology, a standout in the Discrete Semiconductor Products lineup. This single Zener diode is engineered for precise voltage regulation, featuring a robust design that ensures long-term durability. With its low leakage current and high surge capability, the CDLL5520B/TR is perfect for critical applications. Typical uses include voltage stabilization in consumer electronics, such as TVs and audio equipment, as well as in medical devices where consistent performance is paramount. The CDLL5520B/TR is also a preferred choice for circuit protection in renewable energy systems, safeguarding inverters and charge controllers from voltage fluctuations.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 3.9 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 22 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 1 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AB, MELF
- Supplier Device Package: DO-213AB
