CH88102A100-B
Cvilux USA
Cvilux USA
2.54MM(.100) DUAL ROW BOARD MOUN
$0.30
Available to order
Reference Price (USD)
1+
$0.29650
500+
$0.293535
1000+
$0.29057
1500+
$0.287605
2000+
$0.28464
2500+
$0.281675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

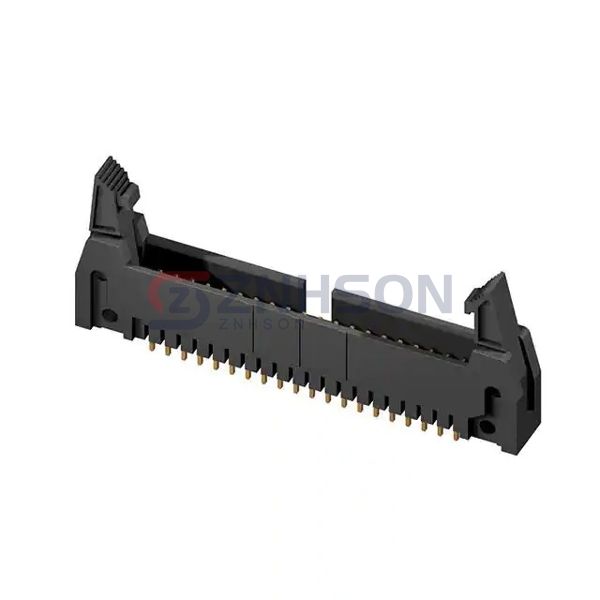

Discover the CH88102A100-B rectangular connector header from Cvilux USA, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the CH88102A100-B adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Cvilux USA guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.654" (16.61mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
