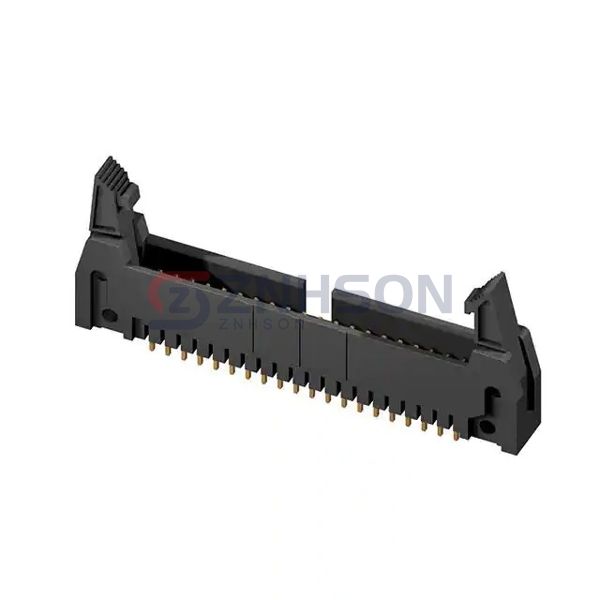

CH88102B100-B
Cvilux USA
Cvilux USA
2.54(.100) DUAL ROW BOARD MOUNT
$0.36
Available to order
Reference Price (USD)
1+
$0.36383
500+
$0.3601917
1000+
$0.3565534
1500+
$0.3529151
2000+
$0.3492768
2500+
$0.3456385
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the CH88102B100-B rectangular connector header by Cvilux USA. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the CH88102B100-B ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Cvilux USA for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: -
- Contact Length - Post: 0.158" (4.01mm)
- Overall Contact Length: -
- Insulation Height: 0.331" (8.41mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
