CHM-9-27-95-36-AC00-F2-3
Luminus Devices Inc.
Luminus Devices Inc.

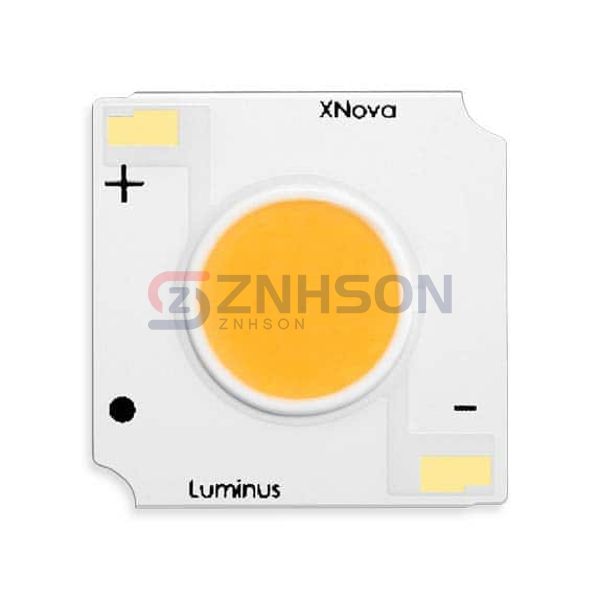

LED COB CHM9 WARM WHITE SQUARE
$2.27
Available to order
Reference Price (USD)
2,400+
$2.27269
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your lighting projects with the CHM-9-27-95-36-AC00-F2-3 from Luminus Devices Inc., a standout in the Optoelectronics category under LED Lighting - COBs, Engines, Modules, Strips. This product boasts excellent color rendering and thermal management, making it suitable for high-end applications like museum lighting, medical lighting, and signage. Trust Luminus Devices Inc. to provide you with a LED solution that meets the highest industry standards.
Specifications
- Product Status: Not For New Designs
- Type: Chip On Board (COB)
- Color: White, Warm
- CCT (K): 2700K 3-Step MacAdam Ellipse
- Wavelength: -
- Configuration: Square
- Luminous Flux @ Current/Temperature: 965lm (Typ)
- Current - Test: 360mA
- Temperature - Test: 85°C
- Voltage - Forward (Vf) (Typ): 35V
- Lumens/Watt @ Current - Test: 77 lm/W
- Current - Max: 720mA
- CRI (Color Rendering Index): 95
- Viewing Angle: 120°
- Features: -
- Size / Dimension: 13.50mm L x 13.50mm W
- Height: 1.37mm
- Light Emitting Surface (LES): 9.00mm Dia
- Lens Type: Flat
