CI1503M1VR0-NH
Cvilux USA
Cvilux USA
3 POS 1.50MM(.059) WIRE TO BOARD
$0.43
Available to order
Reference Price (USD)
1+
$0.43000
500+
$0.4257
1000+
$0.4214
1500+
$0.4171
2000+
$0.4128
2500+
$0.4085
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

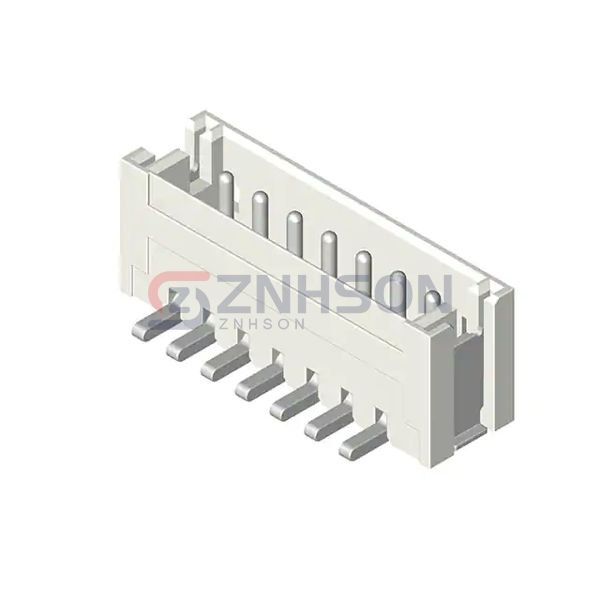

Optimize your interconnections with the CI1503M1VR0-NH rectangular connector header from Cvilux USA. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the CI1503M1VR0-NH is perfect for automotive, industrial, and consumer electronics. Cvilux USA ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.093" (2.36mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.199" (5.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Plastic, Halogen Free
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A (AC/DC)
- Voltage Rating: 50VAC
