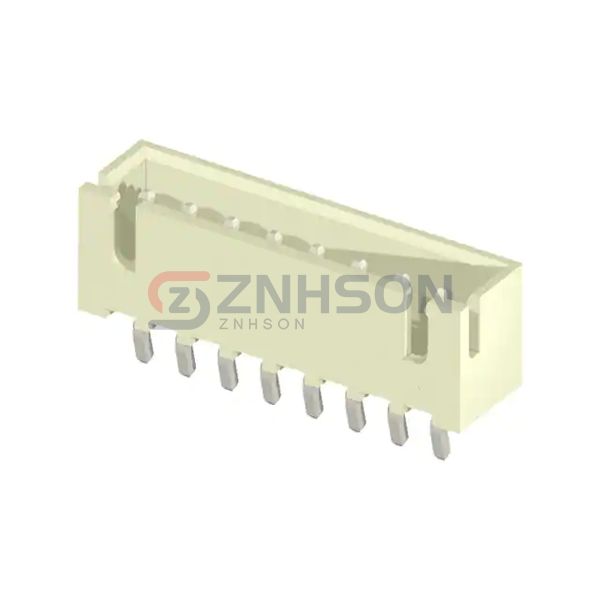

CI2206P1VK0-NH
Cvilux USA
Cvilux USA
6 POS 2.50MM (.098) WIRE TO BOAR
$0.21
Available to order
Reference Price (USD)
1+
$0.21000
500+
$0.2079
1000+
$0.2058
1500+
$0.2037
2000+
$0.2016
2500+
$0.1995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CI2206P1VK0-NH by Cvilux USA is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the CI2206P1VK0-NH supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Cvilux USA ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.276" (7.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
Related Products
CNC Tech
4282-1-0100-12-SP
TE Connectivity AMP Connectors
5-146305-6
Harwin Inc.
M22-2200446
Amphenol ICC (FCI)
69190-207

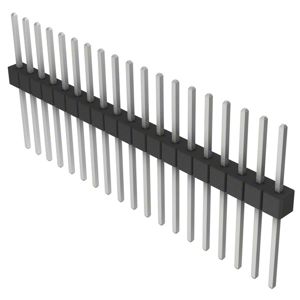

Sullins Connector Solutions
PEC19SFDN

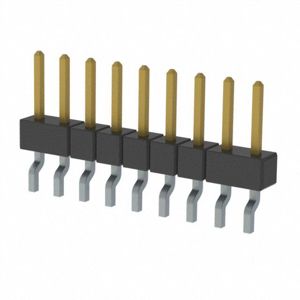

Samtec Inc.
MMT-109-02-L-SH

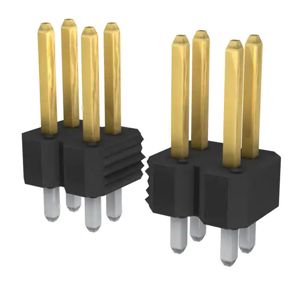

Amphenol ICC (FCI)
77313-101-20LF

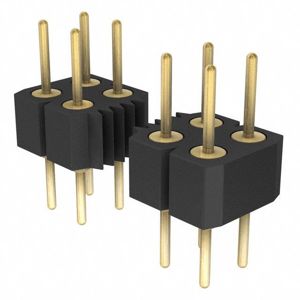

Preci-Dip
