CI3103P1V00-NH
Cvilux USA
Cvilux USA
3 POS 2.54MM(.100) WIRE TO BOARD
$0.17
Available to order
Reference Price (USD)
1+
$0.17000
500+
$0.1683
1000+
$0.1666
1500+
$0.1649
2000+
$0.1632
2500+
$0.1615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

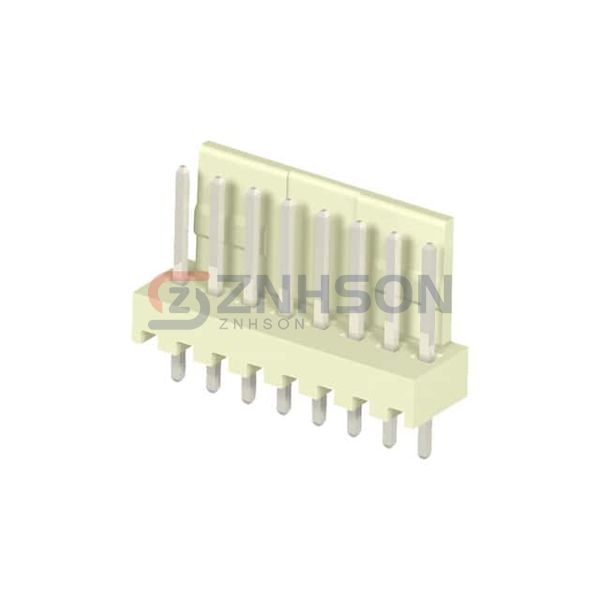

Discover the CI3103P1V00-NH rectangular connector header from Cvilux USA, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the CI3103P1V00-NH adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Cvilux USA guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.559" (14.20mm)
- Insulation Height: 0.453" (11.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic, Halogen Free
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
