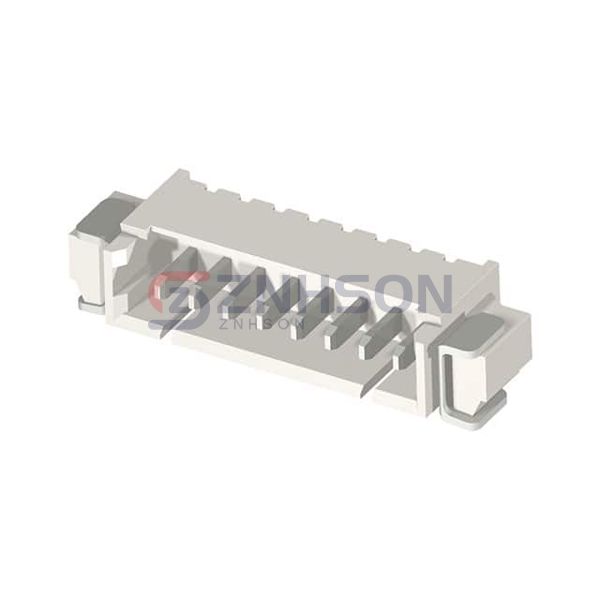

CI4406M1HR0-NH
Cvilux USA
Cvilux USA
6 POS 1.25MM(.049) WIRE TO BOARD
$0.34
Available to order
Reference Price (USD)
1+
$0.34000
500+
$0.3366
1000+
$0.3332
1500+
$0.3298
2000+
$0.3264
2500+
$0.323
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the CI4406M1HR0-NH rectangular connector header from Cvilux USA. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the CI4406M1HR0-NH is perfect for automotive, industrial, and consumer electronics. Cvilux USA ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.134" (3.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 125VAC
Related Products
Samtec Inc.
ZSS-106-02-T-D-580
Molex
87427-1842
Preci-Dip
890-70-021-20-002101
Preci-Dip
451-10-246-00-017101
Samtec Inc.
HTSW-105-07-L-D-009
Samtec Inc.
SHF-108-01-L-D-TH
HARTING

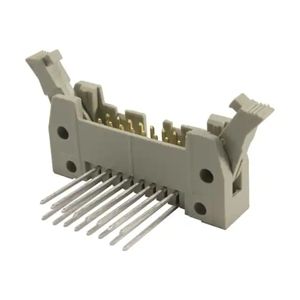

09185206926
Molex

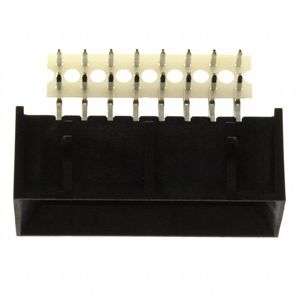

0444281601
HARTING

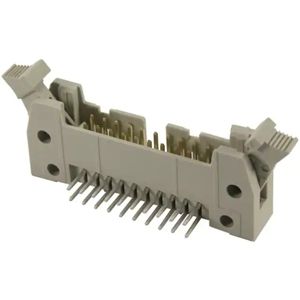

09185607911
