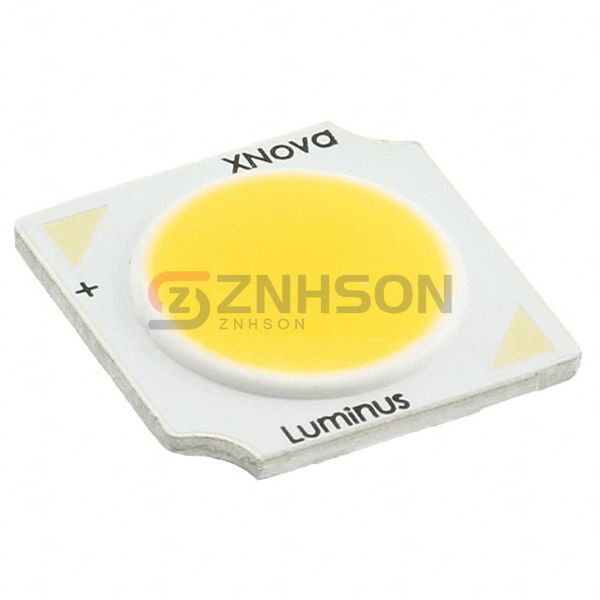

CLM-9-30-80-36-AC00-F2-3
Luminus Devices Inc.
Luminus Devices Inc.
LED COB 5.6W 660LM 13.5MM SQ SMD
$1.27
Available to order
Reference Price (USD)
2,400+
$1.27075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CLM-9-30-80-36-AC00-F2-3 by Luminus Devices Inc. is a high-performance LED lighting solution in the Optoelectronics category, specifically LED Lighting - COBs, Engines, Modules, Strips. With excellent thermal stability and energy efficiency, this product is ideal for applications like UV curing, grow lights, and portable lighting. Trust Luminus Devices Inc. to deliver superior LED products tailored to your requirements.
Specifications
- Product Status: Active
- Type: Chip On Board (COB)
- Color: White, Warm
- CCT (K): 3000K 3-Step MacAdam Ellipse
- Wavelength: -
- Configuration: Square
- Luminous Flux @ Current/Temperature: 660lm (Typ)
- Current - Test: 160mA
- Temperature - Test: 85°C
- Voltage - Forward (Vf) (Typ): 36V
- Lumens/Watt @ Current - Test: 115 lm/W
- Current - Max: 350mA
- CRI (Color Rendering Index): 80
- Viewing Angle: 120°
- Features: -
- Size / Dimension: 13.50mm L x 13.50mm W
- Height: 1.37mm
- Light Emitting Surface (LES): 9.00mm Dia
- Lens Type: Flat
