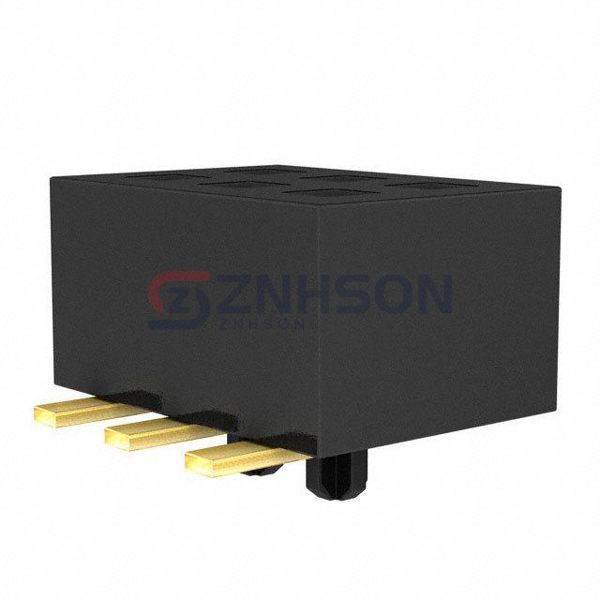

CLP-103-02-G-D-BE-A-TR
Samtec Inc.
Samtec Inc.
CONN RCPT 6POS 0.05 GOLD SMD
$1.67
Available to order
Reference Price (USD)
500+
$1.45600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your connectivity solutions with CLP-103-02-G-D-BE-A-TR Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors are designed for easy integration and long-lasting performance in consumer electronics, security systems, and agricultural machinery. Featuring tool-less assembly, color-coded housings, and IP-rated options, they simplify installation and maintenance. Applications include smart appliances, surveillance cameras, and automated farming equipment. Samtec Inc. connectors deliver the reliability and efficiency your projects demand.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom Entry
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 6
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.084" (2.14mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide
- Current Rating (Amps): 3.3A per Contact
- Voltage Rating: 240VAC, 330VDC
Related Products
Samtec Inc.
CES-118-02-T-S
Mill-Max Manufacturing Corp.
316-41-152-41-008000
Samtec Inc.
BCS-123-LM-D-PE
Samtec Inc.
TLE-112-01-G-DV-A-K-TR
Preci-Dip
446-83-216-41-036101
Mill-Max Manufacturing Corp.
311-41-122-41-001000
Samtec Inc.
BCS-112-T-D-TE
Sullins Connector Solutions

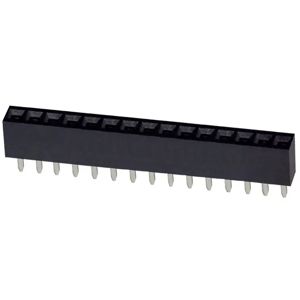

PPTC151LFBN-RC

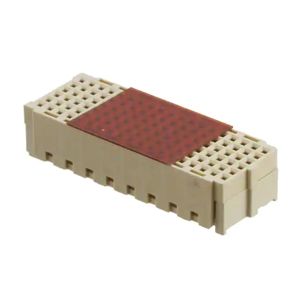

TE Connectivity Aerospace, Defense and Marine
