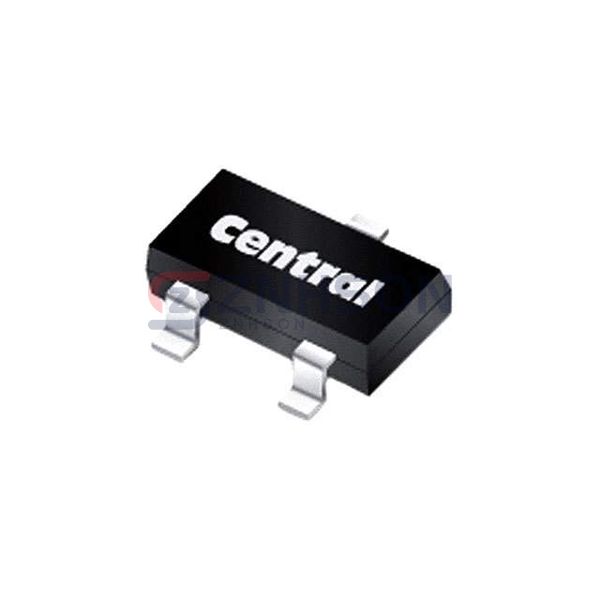

CMPSH-3S BK PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE ARRAY SCHOTTKY 30V SOT23
$0.32
Available to order
Reference Price (USD)
1+
$0.32490
500+
$0.321651
1000+
$0.318402
1500+
$0.315153
2000+
$0.311904
2500+
$0.308655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CMPSH-3S BK PBFREE from Central Semiconductor Corp sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Central Semiconductor Corp's rigorous quality control ensures the CMPSH-3S BK PBFREE maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 25 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
