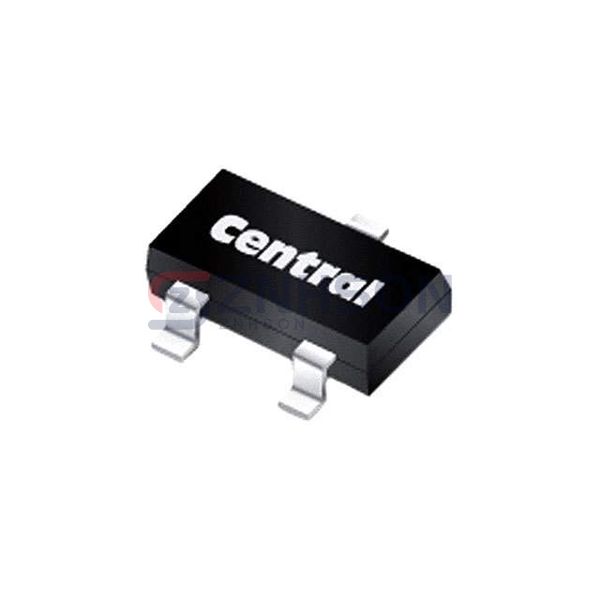

CMPZDA12V TR PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE ZENER ARRAY 12.05V SOT23
$0.17
Available to order
Reference Price (USD)
1+
$0.17000
500+
$0.1683
1000+
$0.1666
1500+
$0.1649
2000+
$0.1632
2500+
$0.1615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Central Semiconductor Corp's CMPZDA12V TR PBFREE represents the cutting edge in Zener diode array technology within the discrete semiconductor products category. These components combine multiple Zener diodes with matched characteristics, ensuring uniform performance across all channels. Key features include low leakage current, precise voltage regulation, and excellent power dissipation capabilities. The product finds extensive use in telecommunications equipment for signal protection, medical devices for sensitive circuit safeguarding, and renewable energy systems for voltage stabilization. With its compact design and reliable operation, this Zener array is ideal for space-constrained applications requiring multiple voltage reference points.
Specifications
- Product Status: Active
- Configuration: 1 Pair Common Anode
- Voltage - Zener (Nom) (Vz): 12.05 V
- Tolerance: ±5%
- Power - Max: 350 mW
- Impedance (Max) (Zzt): 250 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 8 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
