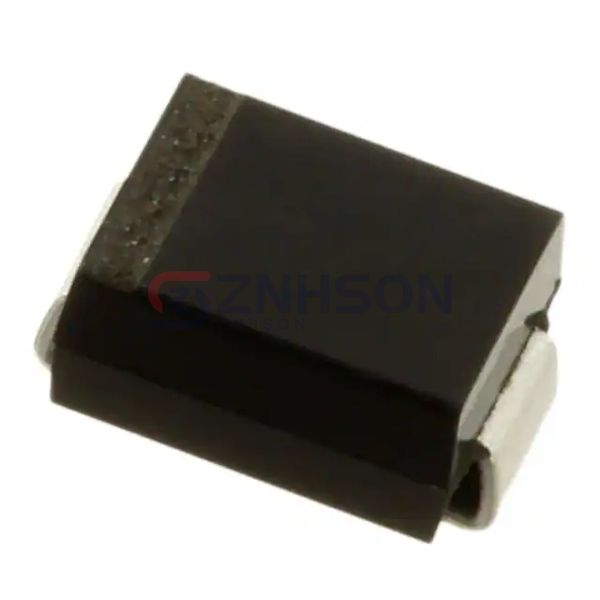

CMSH1-20 BK PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE SCHOTTKY 20V 1A SMB
$0.36
Available to order
Reference Price (USD)
1+
$0.35552
500+
$0.3519648
1000+
$0.3484096
1500+
$0.3448544
2000+
$0.3412992
2500+
$0.337744
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CMSH1-20 BK PBFREE by Central Semiconductor Corp is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the CMSH1-20 BK PBFREE ensures long-term reliability even in harsh operating conditions. Trust Central Semiconductor Corp for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 68pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
- Operating Temperature - Junction: -65°C ~ 150°C
