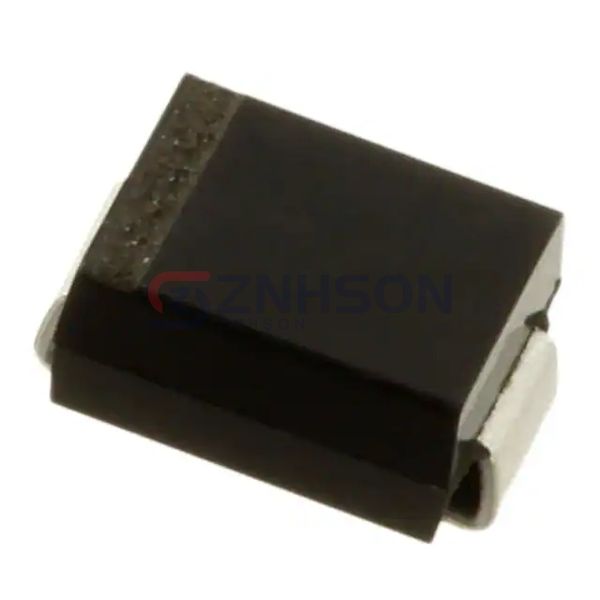

CMSH1-20 TR13 PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE SCHOTTKY 20V 1A SMB
$0.92
Available to order
Reference Price (USD)
1+
$0.92000
500+
$0.9108
1000+
$0.9016
1500+
$0.8924
2000+
$0.8832
2500+
$0.874
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the CMSH1-20 TR13 PBFREE single rectifier diode from Central Semiconductor Corp. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The CMSH1-20 TR13 PBFREE is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Central Semiconductor Corp's commitment to innovation ensures that the CMSH1-20 TR13 PBFREE meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 110pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
- Operating Temperature - Junction: -65°C ~ 150°C
