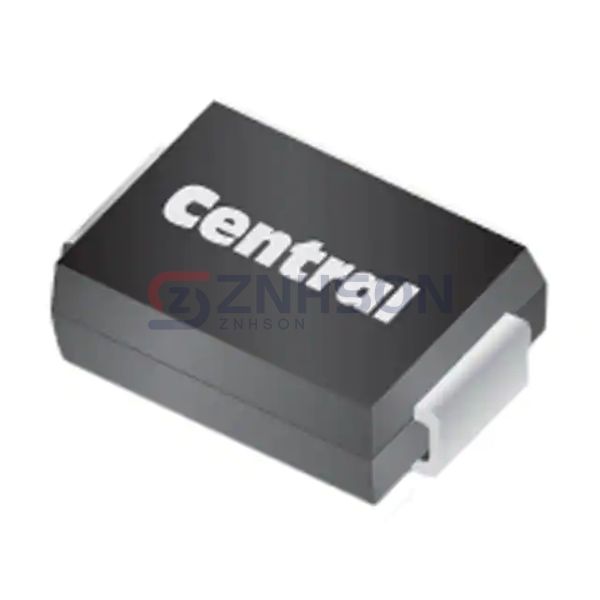

CMSH5-100HV TR13 PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE SCHOTTKY 100V 5A SMC
$1.13
Available to order
Reference Price (USD)
1+
$1.13000
500+
$1.1187
1000+
$1.1074
1500+
$1.0961
2000+
$1.0848
2500+
$1.0735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CMSH5-100HV TR13 PBFREE by Central Semiconductor Corp is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the CMSH5-100HV TR13 PBFREE ensures long-term reliability even in harsh operating conditions. Trust Central Semiconductor Corp for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 100 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: SMC
- Operating Temperature - Junction: -65°C ~ 175°C
