CONSMB001-G
Linx Technologies Inc.
Linx Technologies Inc.

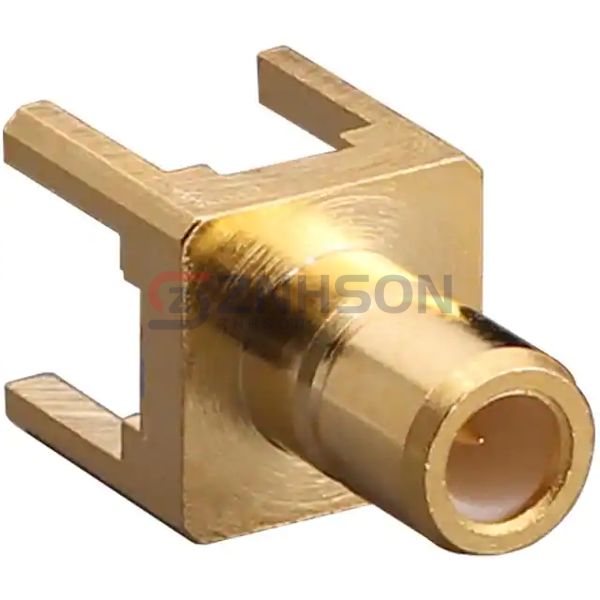

CONN SMB JACK STR 50 OHM PCB
$2.58
Available to order
Reference Price (USD)
1+
$2.58000
500+
$2.5542
1000+
$2.5284
1500+
$2.5026
2000+
$2.4768
2500+
$2.451
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CONSMB001-G from Linx Technologies Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The CONSMB001-G variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
