CP-01410150
Cvilux USA
Cvilux USA
4.20MM 10 POS DUAL ROWS RIGHT AN
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
500+
$0.4356
1000+
$0.4312
1500+
$0.4268
2000+
$0.4224
2500+
$0.418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

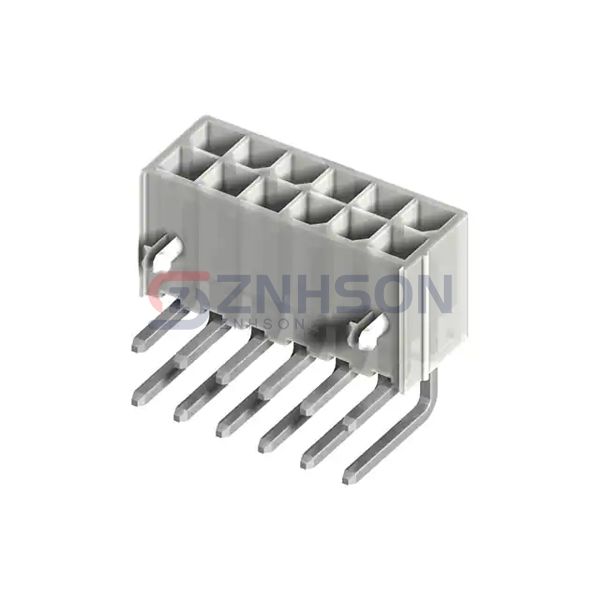

Discover the CP-01410150 rectangular connector header from Cvilux USA, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the CP-01410150 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Cvilux USA guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC
