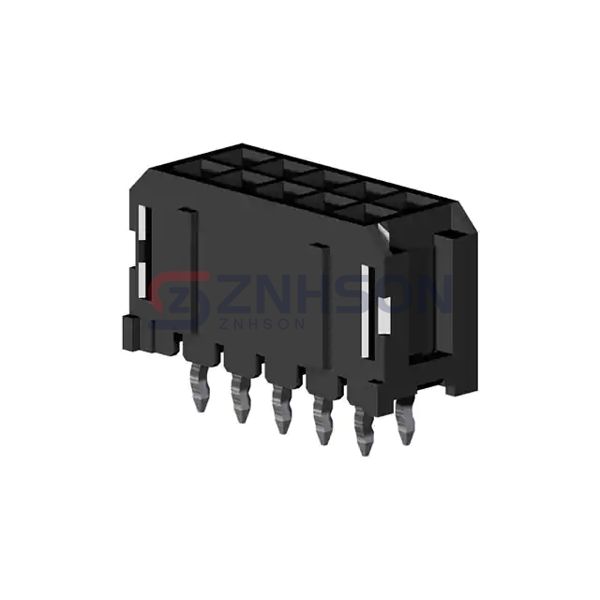

CP3512P1V00-NH
Cvilux USA
Cvilux USA
12 POS 3.00MM(.118) DUAL ROWS VE
$0.48
Available to order
Reference Price (USD)
1+
$0.48000
500+
$0.4752
1000+
$0.4704
1500+
$0.4656
2000+
$0.4608
2500+
$0.456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the CP3512P1V00-NH rectangular connector header by Cvilux USA. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the CP3512P1V00-NH ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Cvilux USA for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Plastic, Halogen Free
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 7A
- Voltage Rating: 600VAC
Related Products
Samtec Inc.
TMM-123-01-T-S-RA
TE Connectivity AMP Connectors
2-1586044-4
HARTING
09185506911
Preci-Dip
350-10-146-00-019101
Molex
0533751010
Molex
1723163114
Samtec Inc.
TSM-103-01-L-DH-TR
Preci-Dip

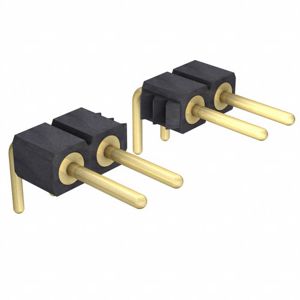

800-10-029-20-004101
Amphenol ICC (FCI)

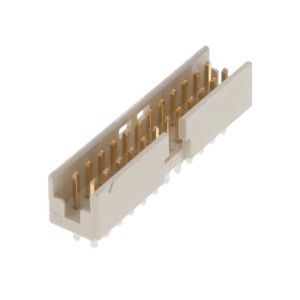

98414-G06-24LF
