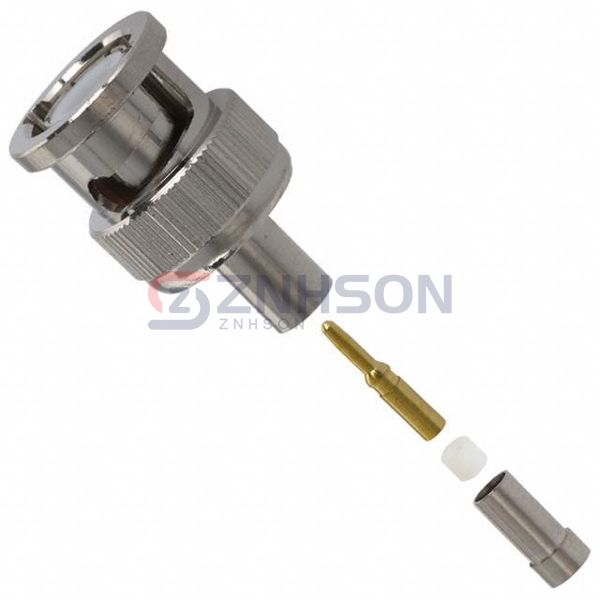

CPM8820
Cinch Connectivity Solutions AIM-Cambridge
Cinch Connectivity Solutions AIM-Cambridge
CONN BNC PLUG STR 50 OHM CRIMP
$3.30
Available to order
Reference Price (USD)
1+
$2.75000
10+
$2.64000
25+
$2.42000
50+
$2.31000
100+
$2.20000
250+
$1.92500
500+
$1.87000
1,000+
$1.59500
2,500+
$1.48500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CPM8820 from Cinch Connectivity Solutions AIM-Cambridge represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The CPM8820 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: RG-179, 187
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
