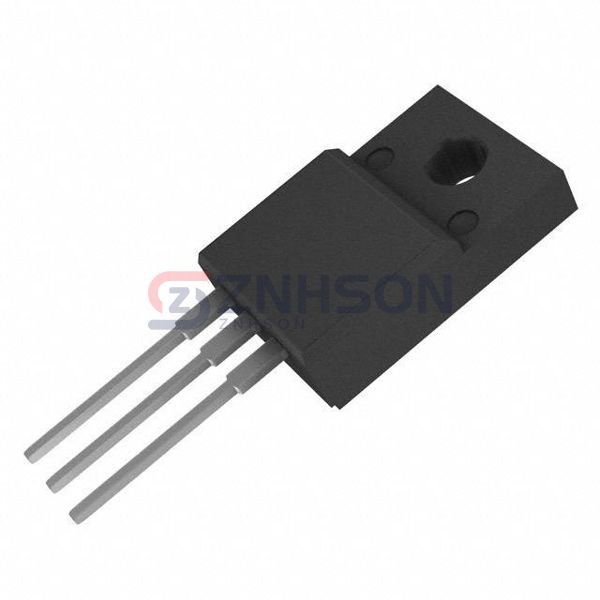

CS22-12IO1M
IXYS
IXYS
SCR 1.2KV 25A TO220
$2.94
Available to order
Reference Price (USD)
1+
$2.91000
10+
$2.63200
50+
$2.35000
100+
$2.11500
250+
$1.88000
500+
$1.64500
1,000+
$1.36300
2,500+
$1.26900
5,000+
$1.22200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance CS22-12IO1M Thyristor - SCR from IXYS, designed for robust and reliable switching applications. As a key component in the Discrete Semiconductor Products category, this SCR offers exceptional thermal stability and surge current handling. Ideal for power control circuits, motor controllers, and industrial automation systems, the CS22-12IO1M ensures precise triggering and long-term durability. Whether used in welding equipment, voltage regulators, or lighting control, this thyristor delivers unmatched performance. Trust IXYS's expertise in semiconductor technology for your next project.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 30 mA
- Voltage - On State (Vtm) (Max): 1.3 V
- Current - On State (It (AV)) (Max): 16 A
- Current - On State (It (RMS)) (Max): 25 A
- Current - Hold (Ih) (Max): 60 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 300A, 325A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack, Isolated Tab
- Supplier Device Package: TO-220 Isolated Tab
