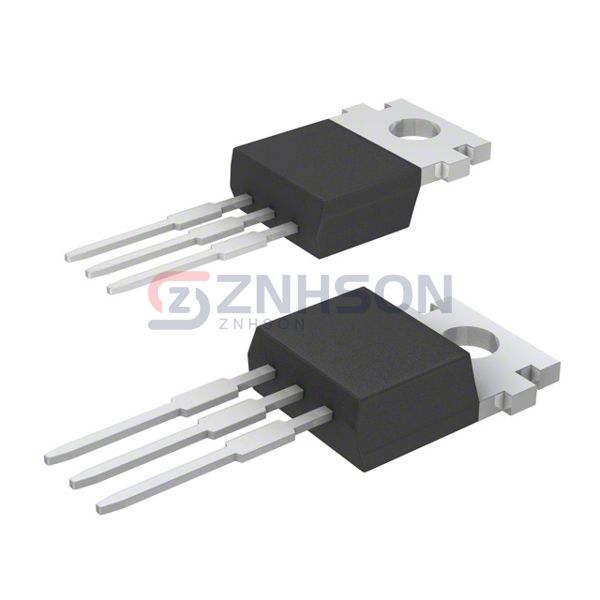

CS5204-1GT3
onsemi
onsemi
IC REG LINEAR POS ADJ 4A TO220-3
$0.68
Available to order
Reference Price (USD)
1+
$0.68000
500+
$0.6732
1000+
$0.6664
1500+
$0.6596
2000+
$0.6528
2500+
$0.646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's CS5204-1GT3 represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the CS5204-1GT3 are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 17V
- Voltage - Output (Min/Fixed): 1.25V
- Voltage - Output (Max): 13V
- Voltage Dropout (Max): 1.2V @ 4A
- Current - Output: 4A
- Current - Quiescent (Iq): 6 mA
- Current - Supply (Max): -
- PSRR: 82dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220-3
