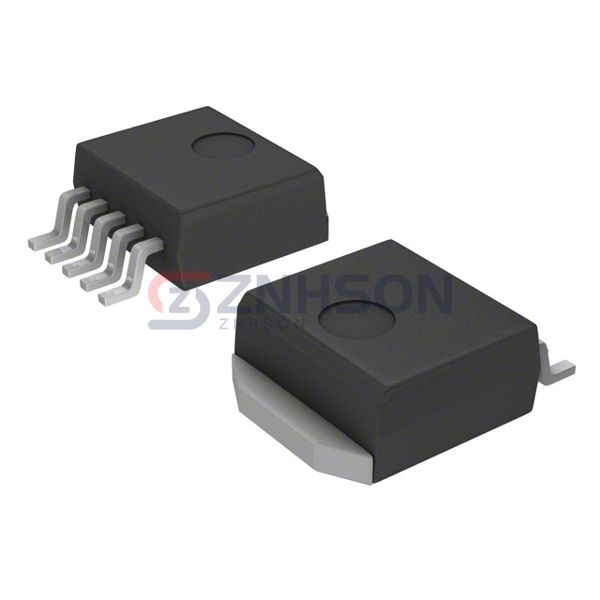

CS8120YDPR5
onsemi
onsemi
IC REG LINEAR 5V 300MA D2PAK-5
$1.26
Available to order
Reference Price (USD)
1+
$1.26000
500+
$1.2474
1000+
$1.2348
1500+
$1.2222
2000+
$1.2096
2500+
$1.197
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CS8120YDPR5 from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 26V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1.5V @ 200mA
- Current - Output: 300mA
- Current - Quiescent (Iq): 650 µA
- Current - Supply (Max): 15 mA
- PSRR: 70dB (120Hz)
- Control Features: Enable, Reset
- Protection Features: Over Temperature, Over Voltage, Short Circuit
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package: D2PAK-5
