CSD16570Q5BT
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 100A 8VSON
$2.93
Available to order
Reference Price (USD)
250+
$1.65000
500+
$1.44376
750+
$1.30351
1,250+
$1.19625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD16570Q5BT by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD16570Q5BT is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.59mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 1.9V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 250 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 14000 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 195W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
STMicroelectronics
STP9NK70ZFP
Nexperia USA Inc.
PSMN6R7-40MLDX
Nexperia USA Inc.

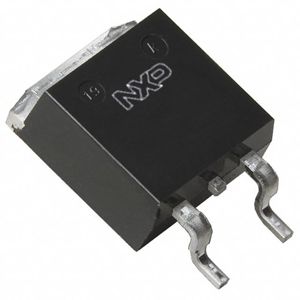

BUK7604-40A,118
Vishay Siliconix

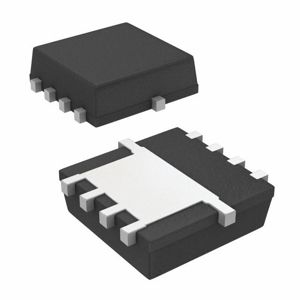

SI7120ADN-T1-GE3
IXYS
IXFP12N50P
Nexperia USA Inc.

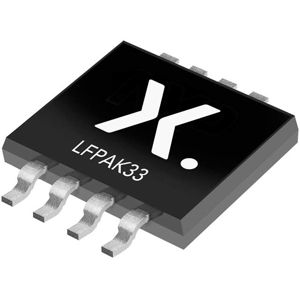

PSMN020-30MLCX
IXYS

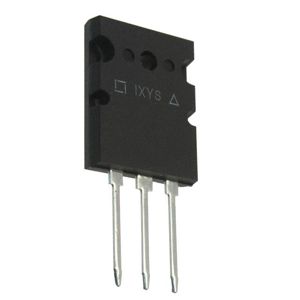

IXFK27N80Q
onsemi

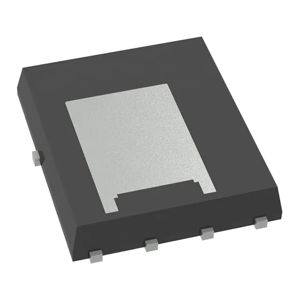

FDMS86101DC
Renesas Electronics America Inc

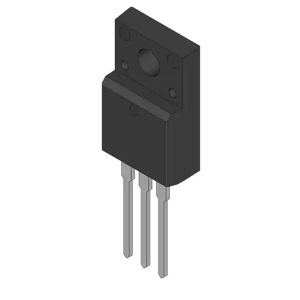

RJK5009DPP-00#T2
