CSD18502Q5B
Texas Instruments
Texas Instruments
MOSFET N-CH 40V 26A/100A 8VSON
$2.86
Available to order
Reference Price (USD)
2,500+
$1.03460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the CSD18502Q5B single MOSFET from Texas Instruments. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Texas Instruments's CSD18502Q5B for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 26A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.3mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 68 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5070 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 156W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
onsemi
NTD20N06LG
Goford Semiconductor
25P06
Vishay Siliconix
SIHG20N50C-E3
IXYS
IXTQ86N20T
Vishay Siliconix
IRFP9240PBF
Fairchild Semiconductor
HUF76429D3
onsemi
NVMFS6H864NT1G
onsemi
FDB52N20TM
Vishay Siliconix

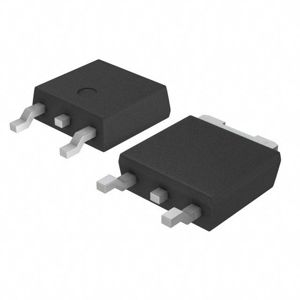

IRLR120TRRPBF
