CSD18509Q5BT
Texas Instruments
Texas Instruments
MOSFET N-CH 40V 100A 8VSON
$2.90
Available to order
Reference Price (USD)
1+
$2.90000
500+
$2.871
1000+
$2.842
1500+
$2.813
2000+
$2.784
2500+
$2.755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD18509Q5BT from Texas Instruments sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Texas Instruments's CSD18509Q5BT for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.2mOhm @ 32A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 195 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13900 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 195W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Toshiba Semiconductor and Storage
TPN4R303NL,L1Q
Rohm Semiconductor
R6050JNZ4C13
Infineon Technologies
IPI80N03S4L-03
Taiwan Semiconductor Corporation
TSM900N10CH X0G
Renesas Electronics America Inc

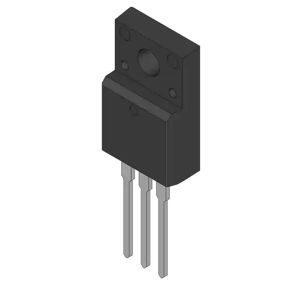

RJK6012DPP-K0#T2
STMicroelectronics
STW20N95K5
Panjit International Inc.

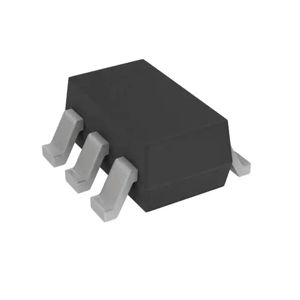

PJS6405_S1_00001
IXYS

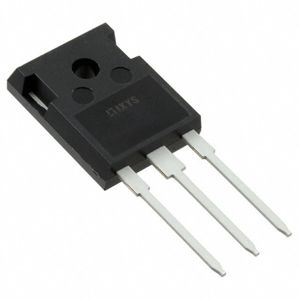

IXFH20N80P
