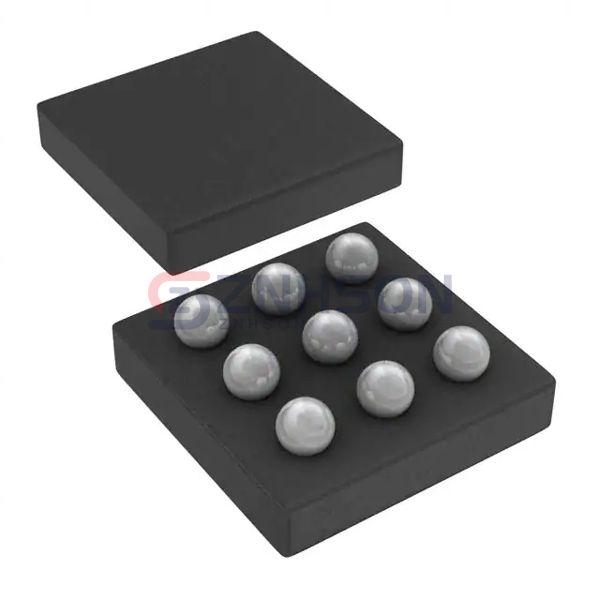

CSD22202W15
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 10A 9DSBGA
$0.77
Available to order
Reference Price (USD)
3,000+
$0.22910
6,000+
$0.22120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the CSD22202W15 from Texas Instruments, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the CSD22202W15 ensures reliable performance in demanding environments. Upgrade your circuit designs with Texas Instruments's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 10A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 12.2mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.4 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1390 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
