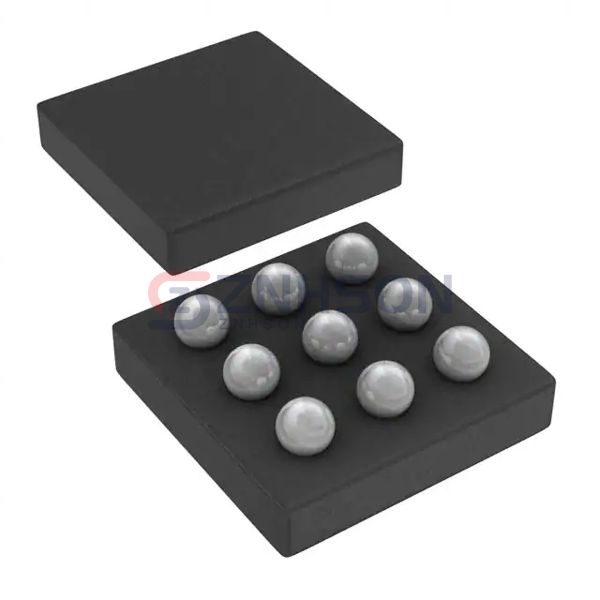

CSD22206W
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 5A 9DSBGA
$0.81
Available to order
Reference Price (USD)
1+
$0.81000
500+
$0.8019
1000+
$0.7938
1500+
$0.7857
2000+
$0.7776
2500+
$0.7695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD22206W single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD22206W is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 5.7mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.6 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 2275 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
