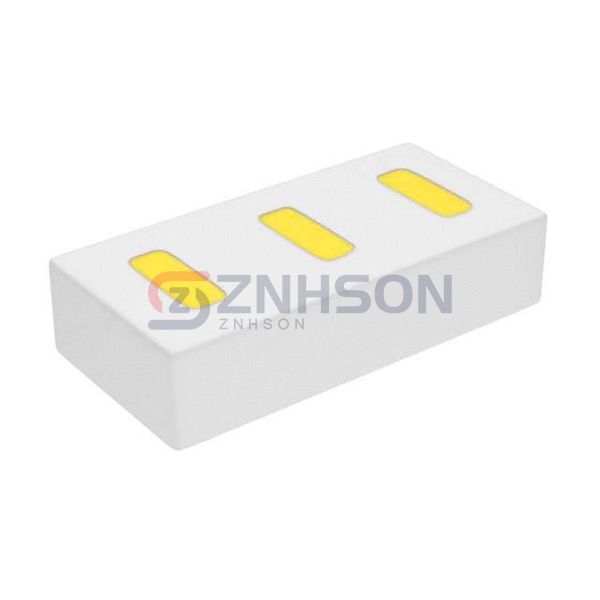

CSD25485F5
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 3.2A 3PICOSTAR
$0.56
Available to order
Reference Price (USD)
3,000+
$0.14520
6,000+
$0.13640
15,000+
$0.12760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the CSD25485F5 by Texas Instruments, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The CSD25485F5 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Texas Instruments.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 8V
- Rds On (Max) @ Id, Vgs: 35mOhm @ 900mA, 8V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.5 nC @ 4.5 V
- Vgs (Max): -12V
- Input Capacitance (Ciss) (Max) @ Vds: 533 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
Related Products
STMicroelectronics
STFW69N65M5
Vishay Siliconix
SQ3481EV-T1_GE3
Diotec Semiconductor
DI020N06D1
Microchip Technology
APTM20DAM05G
Infineon Technologies
IRFU4615PBF
STMicroelectronics
STP40N65M2
Alpha & Omega Semiconductor Inc.
AON7458
Diodes Incorporated
ZXMN10B08E6TA
Panjit International Inc.

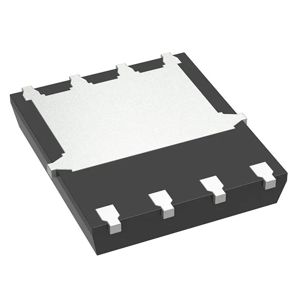

PJQ5458A-AU_R2_000A1
