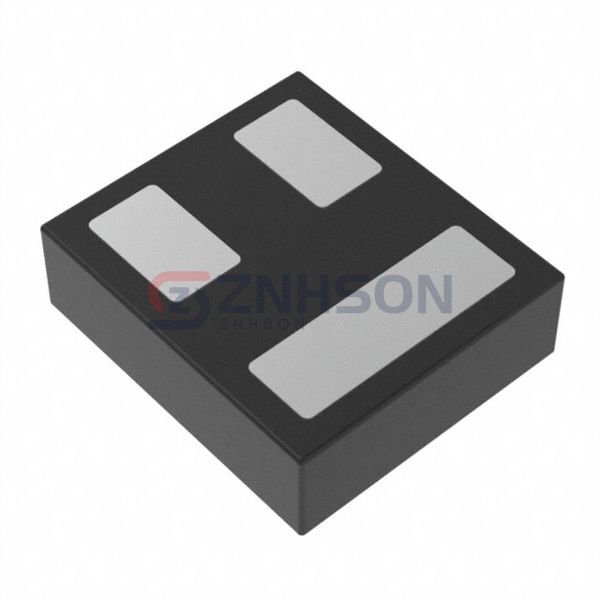

CSD25501F3T
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 3.6A 3LGA
$0.93
Available to order
Reference Price (USD)
250+
$0.18852
500+
$0.15600
750+
$0.13000
1,250+
$0.11700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD25501F3T from Texas Instruments redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the CSD25501F3T offers the precision and reliability you need. Trust Texas Instruments to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 76mOhm @ 400mA, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.33 nC @ 4.5 V
- Vgs (Max): -20V
- Input Capacitance (Ciss) (Max) @ Vds: 385 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-LGA (0.73x0.64)
- Package / Case: 3-XFLGA
Related Products
Infineon Technologies
SPA08N80C3XKSA1
onsemi
FDD770N15A
Vishay Siliconix
IRFBF30PBF-BE3
Nexperia USA Inc.
PMZB290UN,315
Nexperia USA Inc.
PSMN0R9-30ULDX
IXYS
IXFX120N30T
Vishay Siliconix
IRFP150PBF
Micro Commercial Co
SL3401A-TP
Vishay Siliconix
SQD50N04-4M5L_GE3

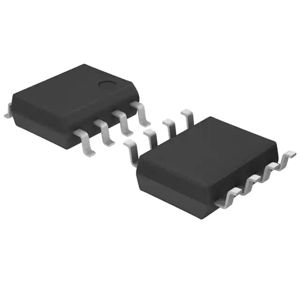

Panjit International Inc.
