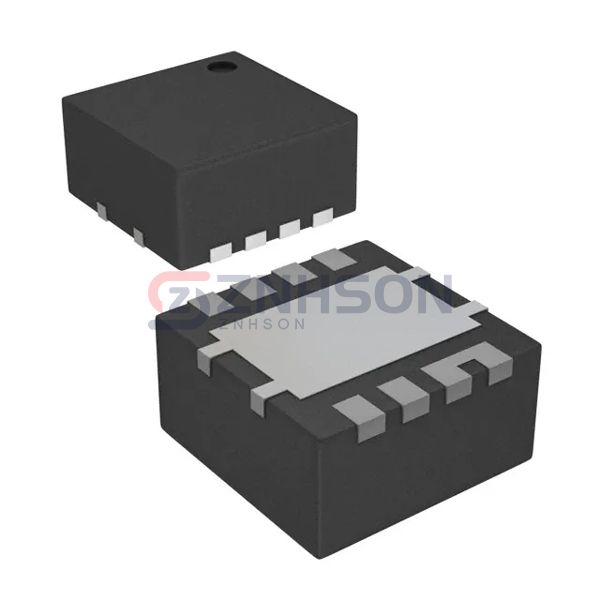

CSD86360Q5D
Texas Instruments
Texas Instruments
MOSFET 2N-CH 25V 50A 8SON
$3.03
Available to order
Reference Price (USD)
2,500+
$1.17585
5,000+
$1.13230
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the CSD86360Q5D by Texas Instruments, a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the CSD86360Q5D ensures energy efficiency and robust performance. Texas Instruments's commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 25V
- Current - Continuous Drain (Id) @ 25°C: 50A
- Rds On (Max) @ Id, Vgs: -
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12.6nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 2060pF @ 12.5
- Power - Max: 13W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerLDFN
- Supplier Device Package: 8-LSON (5x6)
